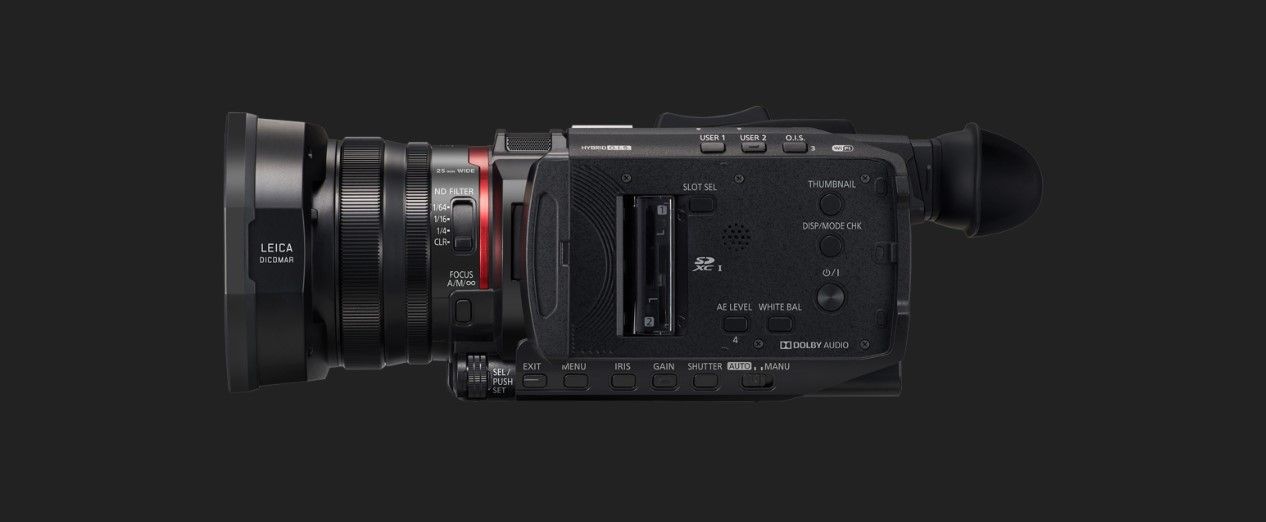

Panasonic HC-X1500GC 4K 60p Camcorder
Versatile 4K 60p Performance with FullHD Live Streaming Capability
If you're shooting behind the scenes (BTS) in HD and would like to add 4K to your repertoire, the Panasonic HC-X1500 UHD 4K/Full HD Director's Camcorder can help balance your needs, or allow you to jump straight to 4K. Compact and lightweight for a director or on-set BTS, the X1500 shoots and records UHD 4K at broadcast-compatible frame rates, so it fits smoothly into your existing broadcast workflow. The X1500 features a 1/2.5" 8.29M MOS sensor that is always shooting at 4K resolution, the Venus processing engine to scale the 4K image for Full HD delivery, and an HDMI output. Audio is recorded in up to 24-bit PCM via the built-in microphone.
The built-in Leica Dicomar lens features a 24x zoom with its widest angle at 25mm, and it uses the digital iZoom feature to zoom up to 48x. The Face Detection AF feature allows you to track faces and automatically adjusts focus on your subject. It also features manual control rings, a control dial, and a 5-axis optical image stabilisation to keep your shots steady. The 3.5" fold-out LCD features a high-resolution touchscreen. The camera records in .mp4, .mov, and AVCHD codecs and features HEVC compression. The camera incorporates two SD card slots, allowing you to use relay and simultaneous recording. The camera also supports live streaming over 2.4 GHz Wi-Fi via RTP/RTSP/RTMP/RTMPS streams.
You also have the option to add the VW-HU1 top handle unit which is available separately and provides two 3-pin XLR inputs, a built-in LED light, a microphone holder, and accessory mounting options.
Features
- Capture up to UHD 4K video and output via HDMI.
- Live stream using RTSP/RTMP/RTMPS streams via Wi-Fi.
- In 4K recording mode, the camera utilises 5-axis optical image stabilisation (O.I.S.).
- The HC-X1500 features dual manual lens rings.
- The camera features built-in selectable ND physical filters.
- The camera records in either MP4, MOV, or AVCHD Progressive.
Specifications
| Imaging | |
| Image Sensor | 1-Chip 1/2.5" MOS Sensor |
| Effective Sensor Resolution | 8.29 MP |
| Gain | to 30 dB |
| Minimum Illumination | 1.5 lux at 1/30 Shutter Speed |
| Lens | |
| 35mm Equivalent Focal Length | 25 to 600mm |
| Optical Zoom Ratio | 24x |
| Max Digital Zoom | 48x |
| Maximum Aperture | f/1.8 to 4 |
| Optical Design | 14 Elements in 11 Groups |
| Control Rings | Focus Zoom Iris |
| Image Stabilisation | Optical |
| Focus Control | Autofocus Manual Focus |
| Camera | |
| Shutter Speed | 1/1 to 1/30 sec |
| Built-In ND Filter | Mechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters |
| Built-In Microphone Type | Stereo |
| Recording Media | 2 x SDXC Card Slots |
| Recording | |
| Recording Modes | AVCHD/MOV/MP4 4:2:0 10-Bit: 3840 x 2160p up to 50/60 fps 1920 x 1080p up to 50/60/120 fps AVCHD/MOV/MP4 4:2:2 10-Bit: 3840 x 2160p at 25/30 fps 1920 x 1080p at 25/30/50/60 fps |
| Audio Recording | MOV: 2-Channel 24-Bit LPCM Audio MP4: 2-Channel 24-Bit AAC Audio AVCHD: 2-Channel 24-Bit AC-3 Audio |
| IP Streaming | RTMP, RTP, RTSP: x |
| Interfaces | |
| Video Connectors | 1 x HDMI Output |
| Audio Connectors | 1 x 1/8" / 3.5 mm Stereo Headphone Output |
| Other I/O | 1 x USB Micro-B Input 1 x 2.5 mm Output |
| Wireless Interfaces | Wi-Fi |
| Display | |
| Display Type | LCD |
| Screen Size | 3.5" |
| Touchscreen | Yes |
| Screen Resolution | 1,560,000 Dots |
| Power | |
| Power Consumption | 7.9 W |
| General | |
| Accessory Mount | 1 x Multi-Interface Shoe |
| Built-In Light | No |
| Dimensions | " / cm |
| Weight | 2.65 lb / 1.2 kg |
