Epson EB-L1490UNL Data Projector
Epson 9000 Lumen Large Venue Laser Light Source Projector
- Laser Light Source – Experience astonishing quality and reliability.
- Up to 3x Brighter Colours and Reliable Performance1 – 3LCD, 3-chip technology.
- 4K Enhancement – Go beyond High Definition with 4K enhancement and native WUXGA (1920 x 1200) resolution for presentations, videos, digital signage and more.
- NEW 9,000 Lumens – Deliver captivating images in virtually any venue.
- Colour Uniformity – Keep images consistent and maintenance to a minimum with built-in automatic colour correction.
- Edge Blending – Combine multiple individual images to create one seamless giant image.
- Professional Tool – Efficiently setup multiple projectors straight out of the box with new large venue application software.
- Remote Camera Access – Monitor projection image remotely.
- Wireless LAN Enterprise Security – Connect projectors in a secure wireless network environment.
- 3x Digital Connections – Digital quality and distance flexibility.
- HDBaseT – Transmit Full HD video and audio, Ethernet and Serial communication through a single CAT 5/6 cable that can be extended up to 100m.
- 360° Installation – Install on any plane, from horizontal to vertical and everything in-between.
- Powered Lens Shift, Zoom and Focus – Project perfectly uniform images with a new stepping motor and store up to 10 lens settings.
- Ten Optional Lenses2 – Choose the ideal powered lens for your venue from a wide range including ultra-short throw and long throw.
- Digital Split Screen – Project two different images from one projector.
1 Colour brightness(colour light output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions. Top-selling Epson 3LCD projectors versus top-selling 1-chip DLP projectors based on NPD sales data for May 2017 – April 2018.
2Please refer to lens compatibility chart
White brightness alone cannot bring the true colours you see everyday. While other manufacturers of 1-chip DLP technology believe they can improve image quality by just increasing the brightness of their projectors’ white light output, Epson ensures that its projectors combine brightness and True Colour to create vibrant and realistic images with 3LCD technology across every projector model.
All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD’s 3-chip architecture dedicates an entire chip to process each primary colour – red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic images and video all delivered with 3LCD’s true-to-life colour.
Epson projectors use 3LCD Engines that have no colour wheel with a white segment and therefore don't force a tradeoff between white and colour brightness.
In fact, Epson projectors have up to 3x Brighter Colours than their leading competitive 1-chip DLP projectors*. If you are looking for business and education projectors or 720p home entertainment projectors, know that choosing Epson projectors means up to 3x brighter colours. If you are looking for 1080p home entertainment projectors, you consistently get 2x and up to 3x Brighter Colours than competitor 1-chip DLP projectors*.
All Epson projectors list both White Brightness and Colour Brightness specifications, and all have high Colour Brightness.
*Colour brightness(colour light output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions. Top-selling Epson 3LCD projectors versus top-selling 1-chip DLP projectors based on NPD sales data for May 2017 – April 2018.
Experience astonishing quality and reliability with Epson’s new laser light source. The newly designed laser light source and advanced electrostatic filter deliver 20,000 hours of maintenance-free use and consistent performance for total peace of mind during important presentations..
Take presenting into the future with support for 4K and the ability to upscale Full HD (1080p and WUXGA) content with Epson’s 4K Enhancement Technology - which shifts pixels diagonally by 0.5 pixels to double resolution - delivering crisp images beyond high definition.
The motorised lens shift covers a wide range, giving you a great deal of flexibility when installing the projector. A newly adopted stepping motor lets you make highly precise adjustments when employing edge blending, stacking and other techniques. Adjustments can be made via remote control or over a network, enhancing usability even for ceiling-mounted projectors.
Keep images consistent and maintenance to a minimum with a built-in camera that detects images that have become uneven over time, detect subtle inconsistencies between multiple projectors and enables automatic colour correction. You can choose whether to check manually or set up for automatic checking at regular intervals.
Up to 10 settings can be stored in the projector memory, including shift positions, focus and projection sizes.
Epson EB-L1490UNL features native resolution up to WUXGA (1920 x 1200), delivering high quality images and crisp, sharp text without any distortion.
WUXGA resolution is ideal for any application requiring Full HD, including BluRay content, graphic intensive programs, film slides, and any application requiring exceptional detail.

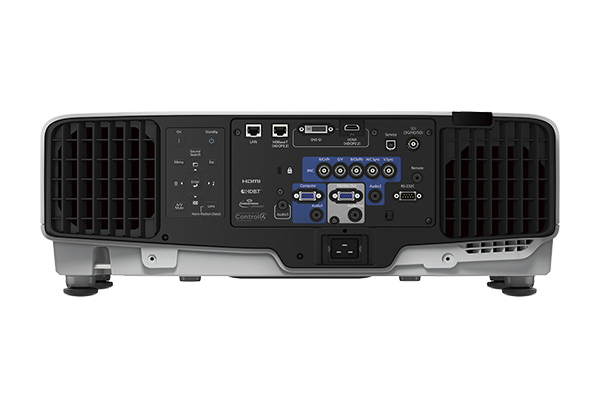

Connect with virtually any system including HDBaseT, SDI, DVI-D, HDMI, VGA, BNC and LAN connectivity. Cutting-edge HDBaseT technology means just one single CAT-5/6 cable carries Full HD video, audio, network and control commands up to 100 meters to accommodate large venues. No need for additional cables, signal repeaters or added labour.
The Epson EB-L1490UNL can be rotated 360° in any direction for off-axis positioning flexibility. As a result, they can be used for a wide range of applications, such as projecting on the ceiling or floor, or as part of a rear-projection system. Epson technology keeps the projector running without compromising performance or causing overheating.
Quickly and precisely correct any vertical or horizontal distortion of an image with Epson’s curved surface and corner wall projection. These features allow for greater flexibility when choosing a projection surface. Enhance your viewers experience by projecting your content in a unique environment with ease.
Split Screen allows users to display content from two inputs simultaneously, side by side, on a single screen with the option of three different layouts. This makes it possible to display video and presentation materials simultaneously, or run video on both screens.
Setup multiple projectors straight out of the box with new large venue application software. Epson Professional tool allows you to adjust and control images projected on a network with high-end projector setup features such as geometry correction, image layout adjustment, lens control and edge blending. Exclusively bundled to Epson L-Series projectors, large scale presenting has become much easier and flexible.
Monitor real-time projection output with a captured image from any remote location. Built-in front cameras are now available to take a snap of projected images which get sent to a monitoring PC via the network. Prevent mishaps by verifying the image output prior to large venue shows or events during the setup stage located in stadiums, lecture halls, museums or at live performance with peace in mind. The feature can be disabled if required.
DICOM (Digital Imaging and Communication in Medicine) is a standard for handling, storing, printing and transmitting medical imaging information. The projector’s DICOM Simulation Mode enables users to reproduce images with an advanced grayscale level that simulates DICOM Part 14. This mode is ideal for viewing grayscale medical images, such as X-rays, for training and educational purposes.
Multiple users can connect simultaneously to one projector using Epson iProjection software which allows you to display four individual PC screens simultaneously over the network (wired or wireless), with up to 50 users connected to the same projector. This feature is a great tool for meetings or classroom projects where multiple users want to present and compare their screens.
Use features such as Epson Projector Management software to monitor and control projectors, with fleet control across a network or on a web browser to keep track of up to 2,000 projectors. The latest models feature a newly designed OSD Control Pad function that shows a representation of lens conditions on a smart device.
The ELPLX02 is a UST lens to accommodate high brightness Epson laser projector models ranging from 9klm to 15klm. This produces images from 100 inches to a massive 1000 inches at a throw distance of 0.74m - 7.69m respectively and has lens shift of +25% vertical and +/- 15% horizontally for added flexibility.
For added flexibility, the EB-L1490UNL offers a total of ten lenses, including middle, wide, long, short and ultra-short throw that allow users to choose the lens most suited for their environment. A quick-release lever allows for a fast, easy lens exchange.

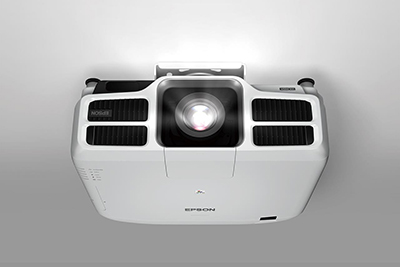

Both standard and low profile ceiling mounts are available to give you even more installation flexibility across the L Series. Both mounts are now grey in colour to easily integrate into any colour scheme.
